- Size: 2900×1300×2000
- Place of Origin: Tai'an, Shandong
- Brand Name: Super Monkey
- Model Number: Wheel Skid Steer -- JC35
- Weight: 1000.000 kg

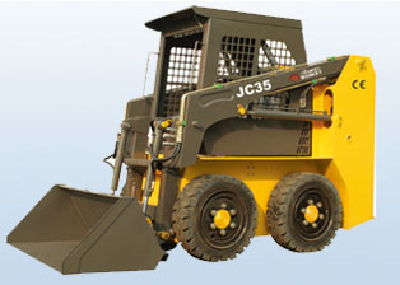

High Quality Low Price Wheel Skid Steer -- JC35
Features
• Compact structure,maneuverable movement suitable for narrow space operation
•Open cabin with mechanical control system
• Double accelerograph control
• Multi-function with a wide range of attachments
• Hydraulic brake
Specifications
| Specifications | |
|---|---|
| Rated Operating Capacity | 500 |
| Tipping load(Kg) | 1000 |
| Bucket Capacity(m3) | 0.25 |
| Work weight | 2200 |
| Travel speed | 12km/h |
| Work flow | 50L/min |
| Fuel tank volume | 50L |
| Tyre model | 10.0/75-15.3 |
| Overall dimension | 2900×1300×2000 |
| Dimensions | |
| Height at Maximum Extension | 3300mm |
| Hinge Pin Height | 2725mm |
| Width with Bucket | 1300mm |
| Track Width | 1080mm |
| Wheelbase | 891mm |
| Ground Clearance | 150mm |
| Dumping Angle | 40° |
| Dumping Height | 2050mm |
| Maximum Reach | 790mm |
| Engine | |
| Model | Changchai 385 |
| Engine power(HP)Max.Travel Speed(km/h) | 35/2500 |
| Type | Direct injection, in-line, water cooling, 4 stroke diesel engine |
| Displacement | 2.54L |
Company Introduction
Taian Luyue Imp.& Exp. Co.,Ltd(Taian Luyue Modern Agricultural Equipment Co.,Ltd) is one of subsidiary company of Shandong New Juling Group, which designs, manufactures and sells a full line of compact skid steer loaders and diesel engines. Since 1993, we have always been focusing on R & D and manufacturing of various different construction machineries such as: skid steer loaders, Wheel Loaders, Track Loaders, Hydraulic products, Pumps and other machineries as well. The products have been exported to about 40 countries or regions covering European Union,Western Africa, Australia, South East Asia, Middle Asia and North America.
Certification
If you have any needs, please contact us
